Playback

<< Click to Display Table of Contents >>

Navigation:  Getting Started > Content Editing, Composition & Playout >

Playback

A Playback is the host for your Playback Provider: a Sequence or a Playlist

The Playback handles play, pause and stop. It defines the mode how your Playlist or Sequence is played ( Loop, Once, Reverse)
and is responsible for timecode handling.

The Playback Editor is the place where you can arrange Content into a Playback Provider

Depending on the Playback Provider, the UI of the Playback Editor changes: a Timeline Interface for Sequence or a Playlist Interfaces for a Playlist

Overview: Playbacks in VERTEX

pme-playback-sequence-model-2pmes



A Playback is the host for a Playback Provider - this could be:

a Sequence

or

a Playlist



informationSpeed up the daily work: VERTEX automatically creates a Playback for every Seqeunce or Playliste you create.
The base settings are done for you..



The Playback handles play , pause and stop. It defines the mode how your Playlist or Sequence is played  (e.g. Loop, Once, Reverse)
and is responsible for timecode handling. Each Playback has a mixing level to fade in or out.
You are able to switch a Playback Provider of a Playback and change it from Sequence to e.g. a Playlist or another Sequence.


informationThe length of a Playback is defined by the Playback Provider.
By default the length is set as 10 Minutes.
If you want to change the length of your timeline for a sequence or the displayed frame scale - you have to set this for your Playback Provider. Select the hosted Sequence into Inspector


The arrangement of the content itself is done into the Playback Provider (Sequence or Playlist)
Each Playback is available in every Playback Mixing Engine (PME). PME acting as "Video Master Faders". They control the main playout level for the whole mix. By default for live and for one preview.


The Playback Editor is the place to edit and compose your content. Depending on the Playback provider you has set, the UI of the playback editor changes. You will get a

Timeline Interface for a Sequence

Playlist Interface for a Playlist

Working with Playbacks

To edit, overview and control Playbacks there are 3 main editors and points into VERTEX.
All Settings for a Playback are done as usual into the Inspector.

Playback Editor

The Playback Editor is the main tab where you can arrange and edit the Content of your playback provider

Learn more basics about the Playback Editors User Interface

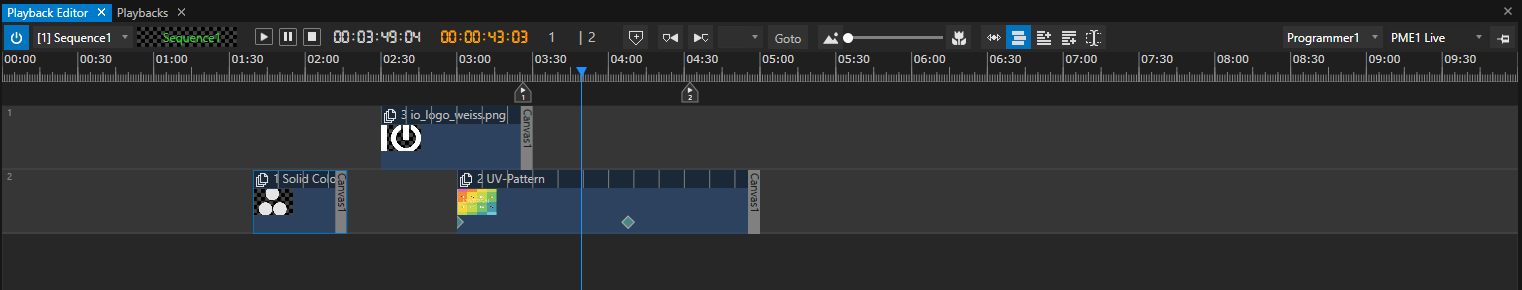

Playback Editor UI for a Sequence:

playback-editor

Please go to the Sequence Topic to learn details about the timeline based workflow with Clip Containers

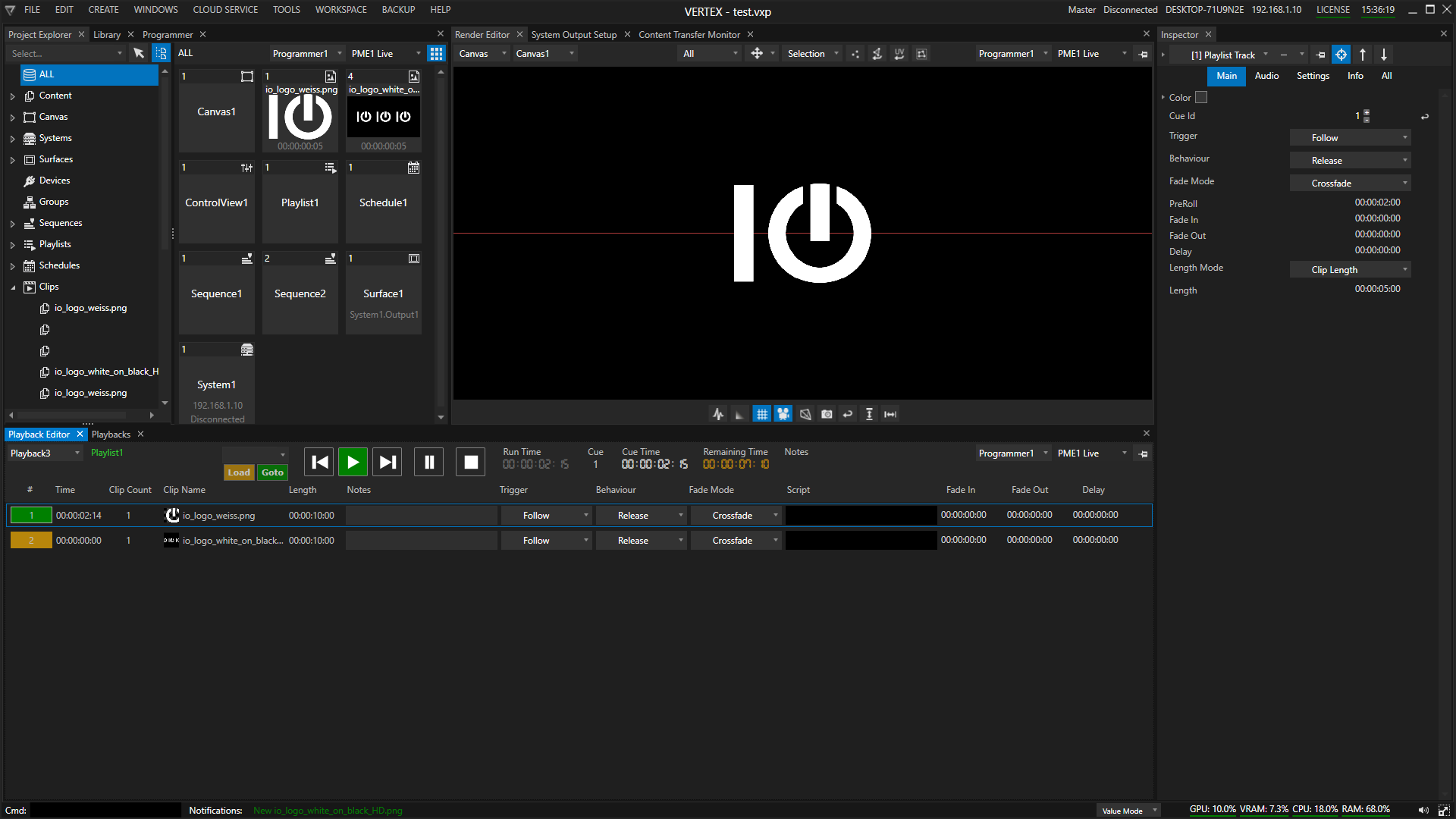

Playback Editor UI for a Playlist
playlist

Learn more about handling and options of a Playlist

Playbacks Window

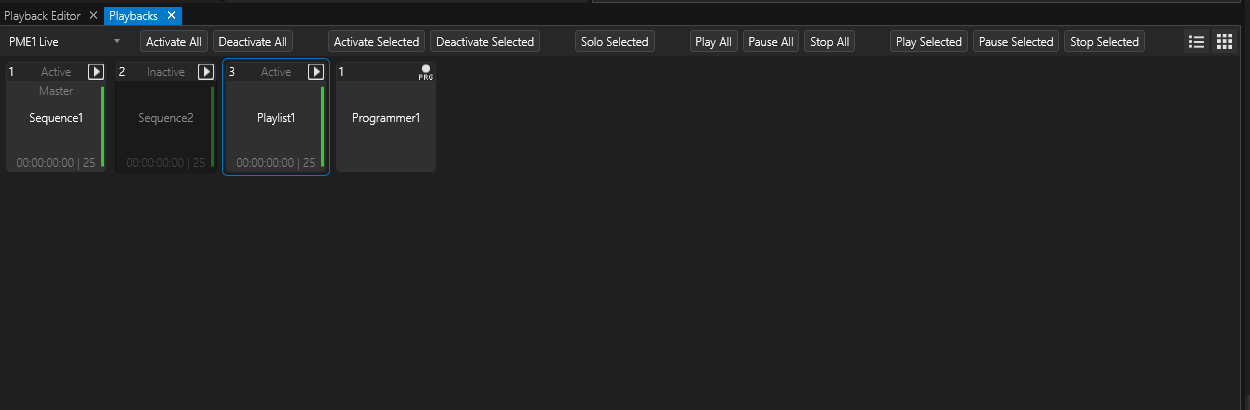

playbacks-tile-view_zoom75

The Playbacks-Window gives you a quick overview about

all existing Playbacks into your Project

their Playback Provider

their current status

their mixing level.


With a rightclick you are able to open a context menu to set Playback Mode and Speed
Selecting a Playback will focus it into Inspector

Project Explorer

Last but not least, the Project Explorer always is a good point to show and select Playbacks for settings and to get a quick overview
about their state and their mixing levels

Playbacks are located as childs of a Playback Mixing Engine (PME) there

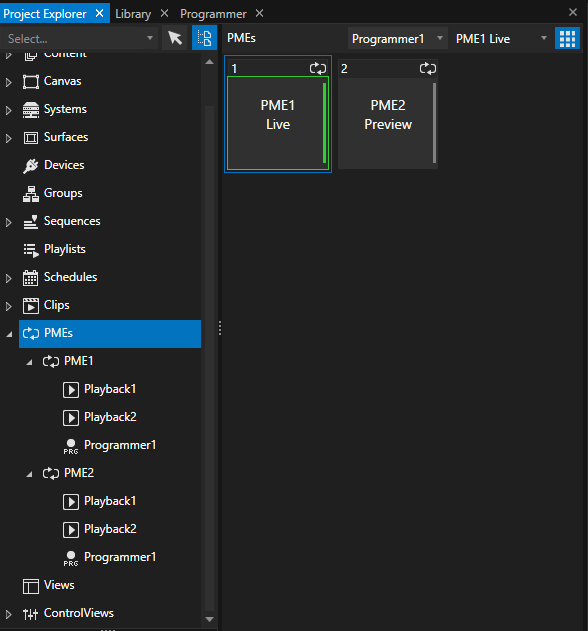

pme-project-explorer_zoom75

Assign a Playback provider to a Playback

When you create a new Sequence or a new Playlist, VERTEX creates also a new Playback for you and directly assigns Your Playlist or Sequence to this Playback.

productivityUse Case:
Playback 2 hosts a Sequence. During your Project work it seems like a Playlist would be a better solution to arrange your content.
Best for you would be to use Playback 2, because you have already created some Control Buttons in a Control View.
You want to change the Playback Provider of Playback 2 from Sequence 2 to Playlist 1.


There are three points to change or assign a Playback Provider to a Playback:

Inspector

Focus or Pin your Playback into Inspector
Drag with your mouse a Sequence or a Playlist from Playback Editor to the Playback provider Field into Inspector

Playback Editor
Select your Playback into Playback Editor
Drag with your Mouse a Playlist or a Sequence in the Playback Provider info there.

Playbacks Window
Open a Playbacks Window or navigate to the already opened Playbacks tab
Drag a Sequence or a Playlist from Project Explorer to a Playback

Playback order into Fullscreen or Render Editor

Playback Order: By default ascending.
When Playback 1 and 2 are running in parallel and are assigned to the same Canvas:
Means Playback 2 is in front of playback 1

you are able to change this order into project settings
Options: ascending, descending or last change (LTP)
