Playbacks

The Playbacks window gives you an organized and quick look on all your playbacks and their status

There are two views with different focus: A tile view for a fast and good overview and a detailed with with controller buttons for play, pause and cues

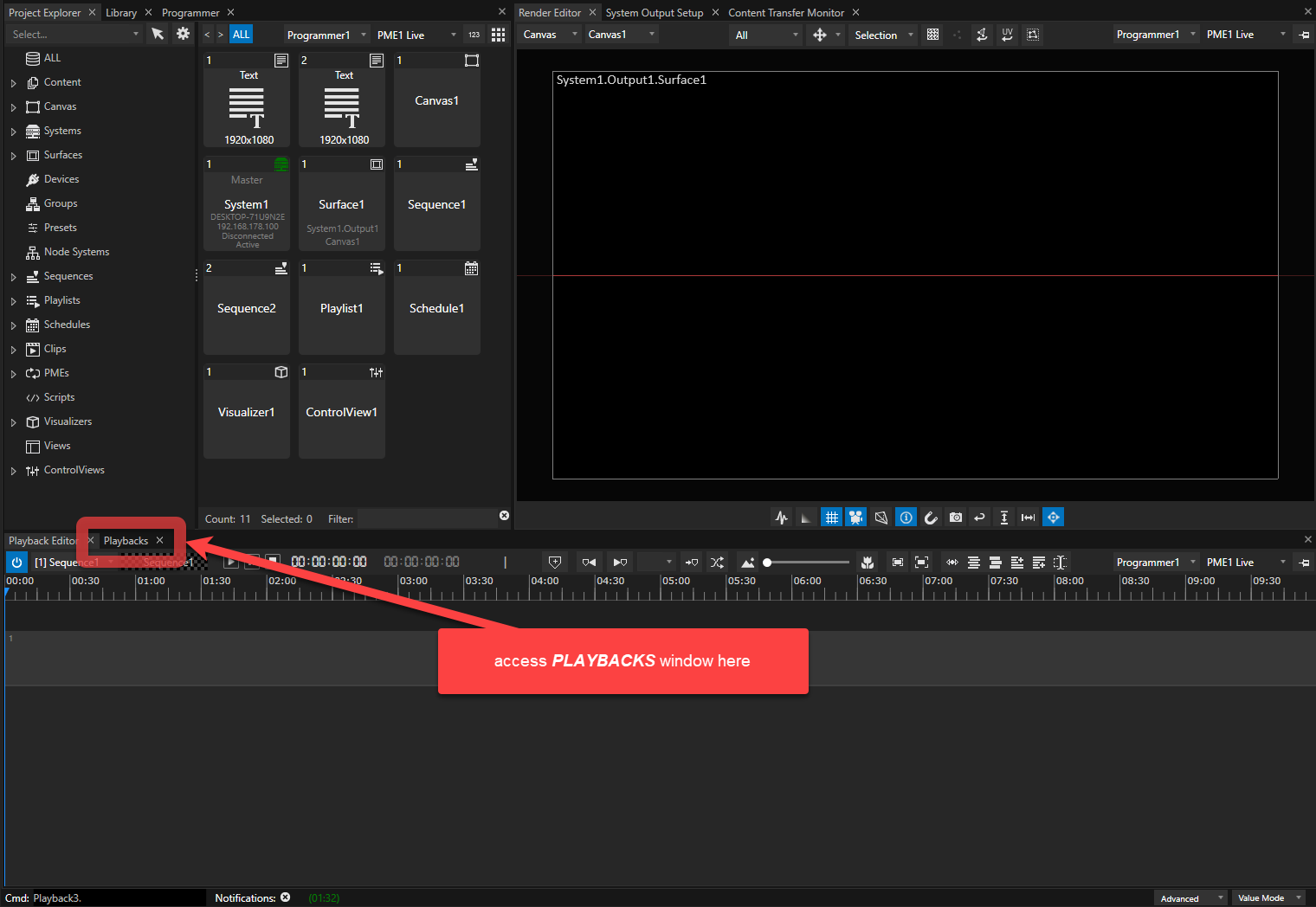

switch between live and preview playback

hmfile_hash_5a4b0136

User Interface

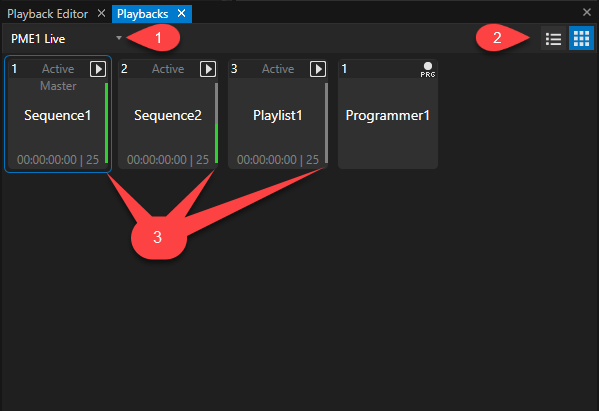

Tile View

playbacks-tile-view

01

PME Selection



Select between discrete Playback Mixing Engines: live or preview(s)
Default: live

02

Window Layout

Select between a tile and a list view

03

Mix Level

green status bar showing mix levels
Playback1: 100% (default)
Playback2:  50 %

Playback3:    0 %

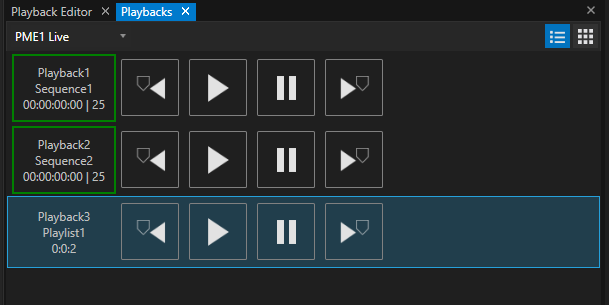

Detailed View

playbacks-list-view

On the left side are all playbacks listed with infos on playback provider, current playhead position and FPS.

On the right are transport controls for each playback: previous cue, play, pause, next cue.
