License Activation

<< Click to Display Table of Contents >>

Navigation:  Installation and Setup >

License Activation

There is a Menu for License Management which is located in the top right corner of the top bar

Check the Status, Activate or Deactivate your System License or a Smart Dongle License

Read the topic License model and Options to get all information about the different types of VERTEX licenses

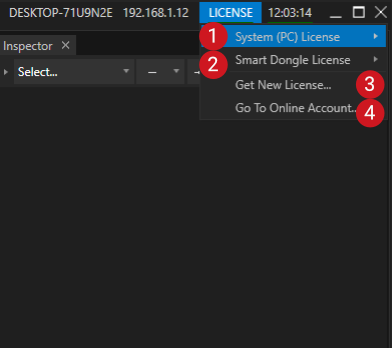

License Menu




A green or red line under LICENSE quickly shows you the license status:

if a valid license is activated (green) or

if no license is activated (red) and VERTEX is in Trial Mode



The license menu navigates you through the different options to handle, activate and deactivate your license.
You can easily do this with an internet connection, but there are also offline options to do this without internet.
Both for a System (PC) License and a Smart Dongle License






01

System (PC) License

Activate and lock one of your VERTEX license on your PC
Deactivate and unlock licenses from your PC
Update Licenses

All options are possible:
online - connected to the internet (fast and easy)

offline - with a second device with an internet connection (takes a little longer, but the mediaserver PC can stay offline and without internet)

02

Smart Dongle License

Activate and lock one of your VERTEX license on one of ioversals Smart Dongles
Deactivate and unlock licenses to your Smart Dongle
Update Licenses


All options are possible:
online - connected to the internet (fast and easy)

offline - with a second device with an internet connection (takes a little longer, but the mediaserver PC can stay offline and without internet)

You can buy Smart Dongles in the ioversal online store or at one of our partners

03

Get new License

Jump to the ioversal online store. Instantly buy a new license. If paid with e.g. Credit Card the new license will be able to use within seconds.

05

Go to Online Account

Go to the ioversal online account and login there to see all licenses that are connected to your account



Online Account

You are able to instantly buy licenses online

all your licenses are managed into your ioversal online account

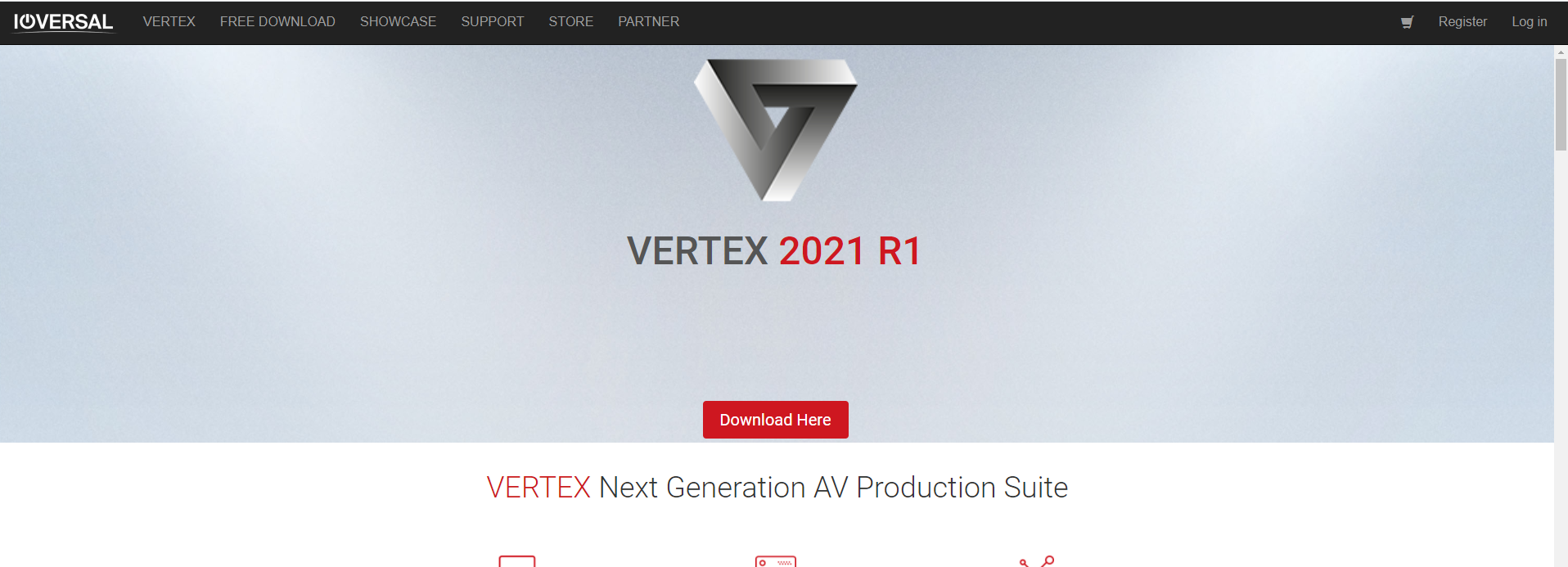

just log in on www.ioversal.com

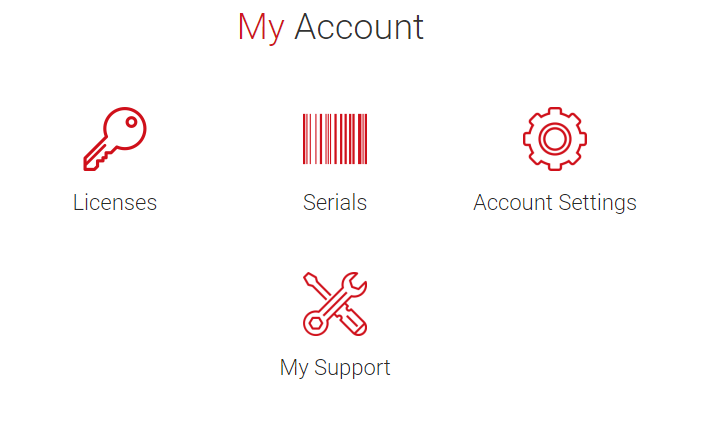

Once logged in, click on your user name to see different options

Click on "Licenses" to see and manage all your VERTEX licenses

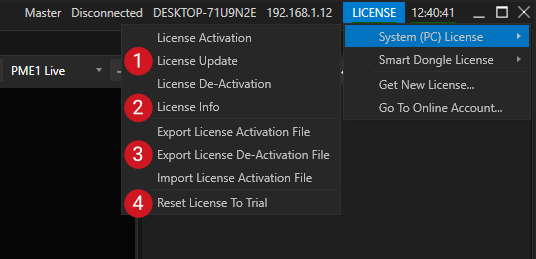

System (PC) License




01

Online Activation, Deactivation or Update

Activate VERTEX and lock your license to the Hardware
Deactivate VERTEX: Unlock your license from a Hardware and use it on another

Update: Update your current license. e.g. when a renew for another feature update period

For all this options, the PC with VERTEX has to be connected to the Internet.

02

License Info

Shows all information about your current license (user, expiry date, license key, type..)

03

Offline Activation/Deactivation

Activate VERTEX and lock your license to the Hardware
Deactivate VERTEX: Unlock your license from a Hardware and use it on another

For this options, NO internet connection is required on the PC on that VERTEX is running.
But you need to have a second device with internet to log in to your ioversal user account.

04

Reset License to Trial

Delete all license information from your current hardware and set your license back to Trial.

License Activation/Update/ Deactivation

hardwareYou need to have:
1        an user account on www.ioversal.com
2.        a valid VERTEX license with status "released" (that was bought with/transferred to this account and that is not already activated on another system/dongle)
 for a license update: a valid update that was bought and payed in your online license management
3.        an internet connection

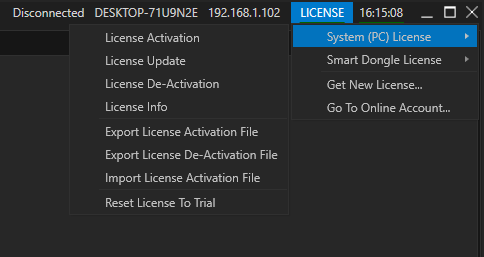

Activation

1.Start VERTEX

2.Go to the license menu




3.Select System (PC) License

4.Click to "License Activation"




5.Enter your user account credentials and your password.
As an option: Enter a certain License Key, e.g. if you manage a bunch of VERTEX licenses with your user account. With this option you are able to activate a specific license
If no License Key is entered, the license manager will automatically pick up one of the free licenses from your user account

6.A status message will show you whether the activation was successful or not.

7.Wait a few seconds - The red line under License should change to green

informationInternet-Connection and License
Once a license is successfully activated, feel free to cut off the internet access for your System again. VERTEX and the activated license will work until the Expiry Date is reached (the check the Expiry Date got to License Info in the License Menu).
When you have reached the expiry date of such an "offline" System, you are not able to install new VERTEX releases - but the old software versions are still working

Deactivation

1.Click to License De-Activation

2.Enter your user name and your password, confirm

3.A status message will show you whether the activation was successful or not.

4.The VERTEX License Status is underlined in red

5.Your License in your online license management at www.ioversal.com is in status released again

Update

informationBuy an update and renew your License
You are able to renew your license to get among others the newest updates for VERTEX versions. To Update a license, log in to your user account,
go to "Licenses" there. Open your License list, click to "renew". The license update is put in the shopping cart.
If you want to change the type of your license, please contact the support



1.Check at your user account for a valid update for the license that is logged to the System you want to update

2.Go to entry "License Update"

3.Enter your user name and your password, confirm

4.A status message will show you whether the activation was successful or not.

5.Check at License Info: the displayed expiry date should be extended



License Info

Opens a Window that shows you all information about your current VERTEX License



Offline Activation

hardwareYou need to have:
1        an user account on www.ioversal.com
2.        a valid VERTEX license (that was bought with/transferred to this account and that is not already activated on another system/dongle)
3.        an USB Stick, SD Card or external harddrive
4.        a second PC with an internet connection



1.Start VERTEX

2.Open License Menu

3.Select System (PC) License




4.Click to "Export License Activation File"

5.Enter your user account credentials and your password and confirm (This information will be stored into the activation file)

6.Save the activation file on a portable drive

7.Go to a PC with internet connection and sign in with your user account on www.ioversal.com

8.Go to "My Licenses", select "License details"

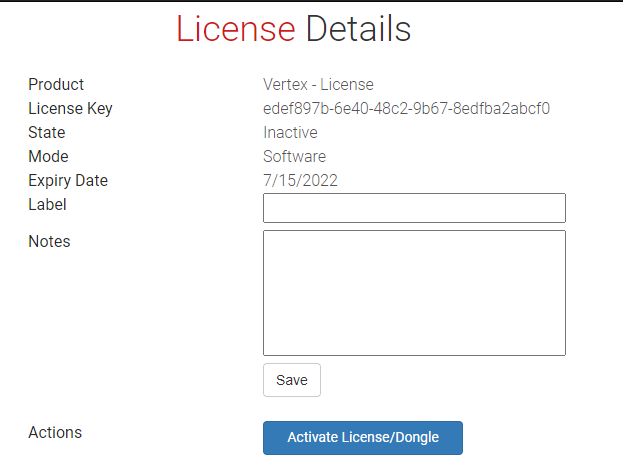

License details at www.ioversal.com for a released but not yet activated license. Once activated, you will see more options for e.g. deactivation

License details at www.ioversal.com for a released but not yet activated license. Once activated, you will see more options for e.g. deactivation

9.Click to "Activate License/Dongle"

10.Upload the Activation file

11.Download the "Receipt" Activation File and upload this to your portable Drive

12.Go back to your PC again, click to "Import License Activation File"

13.Choose the "receipt" activation file you have downloaded before

14.Your license should be activated now.
After a few seconds the license status should change from red to green .



Offline Deactivation

hardwareYou need to have:
1        an user account on www.ioversal.com
2.        A VERTEX system with an activated license which is assigned to your user account
3.        an USB Stick, SD Card or external harddrive
4.        a second PC with an internet connection



1.Start VERTEX

2.Open License Menu

3.Select System (PC) License

4.Select Export License De-Activation File






5.Enter your User name and your password

6.Save the deactivation file on a portable drive

7.Go to a PC with internet connection and sign in with your user account on www.ioversal.com

8.Go to "My Licenses", select "License details"

9.Click to "Deactivate License/Dongle"

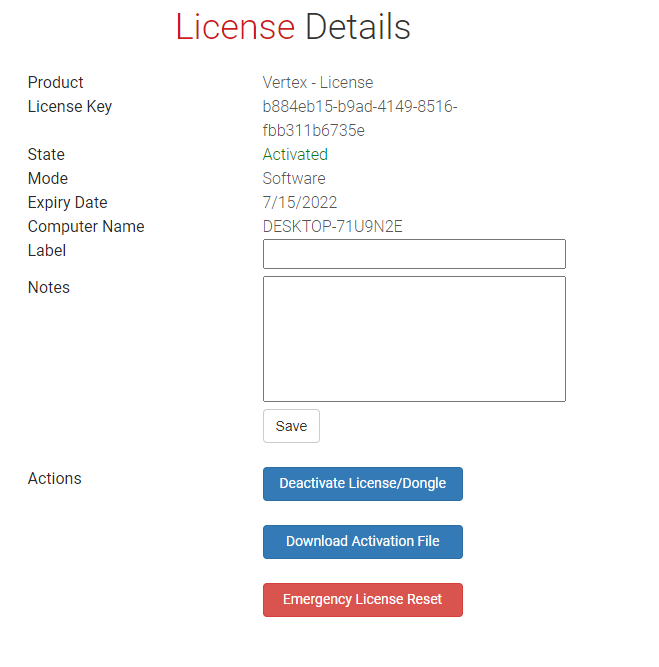

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation

10. A file upload dialog opens

11.Select the deactivation file and upload it

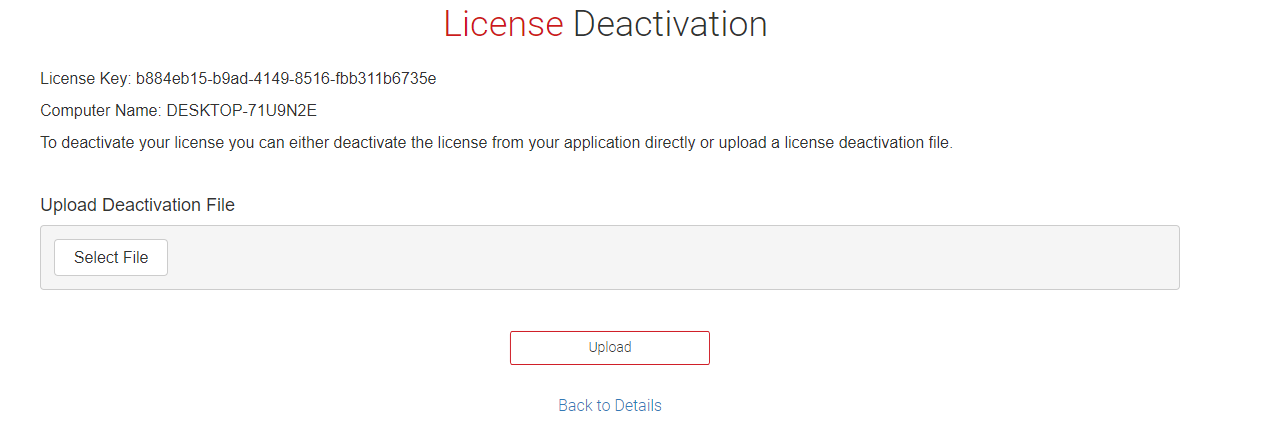

licenseonlinemanagement_deactivation_zoom50



12.Your license now should be successfully deactivated



informationDe-Activation file when VERTEX is uninstalled
If you uninstall VERTEX from your PC and the software is still activated, die VERTEX uninstaller offers you to save a deactivation file.
To deactivate your license, please also do steps 7 to 12.

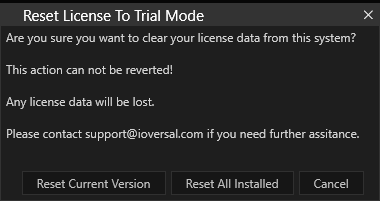

Reset License to Trial

With this option you are able to reset only the current or all VERTEX Version on your PC back to Trial mode!




warningReset License to Trial - Licenses will not be deactivated
Please consider that all license data is lost. If no deactivation is done before, the license still is logged on your hardware and can not used on another system.
If accidentally done, contact the ioversal support or do an Emergency License Reset

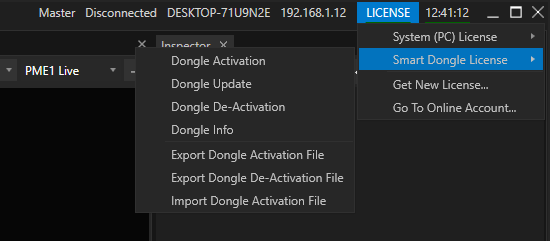

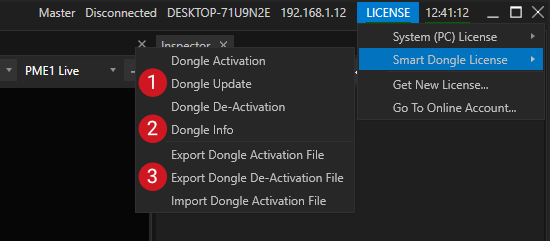

Smart Dongle License






01

Dongle Online Activation, Deactivation or Update

Dongle Activation: store and activate your license to an ioversal Smart Dongle
Dongle Deactivation Unlock your license from an ioversal Smart Dongle

Dongle Update: Update your current license. e.g. when a renew for another feature update period

For all this options, the PC with VERTEX has to be connected to the Internet.

02

Dongle Info

Shows all information that is stored on your smart dongle (user, expiry date, license key, type..)

03

Dongle Offline Activation/Deactivation

Dongle Activation: store and activate your license to an ioversal Smart Dongle
Dongle Deactivation Unlock your license from an ioversal Smart Dongle

For this options, NO internet connection is required on the PC on that VERTEX is running.
But you need to have a second device with internet to log in to your ioversal user account.

Dongle Activation/Update/ Deactivation



hardwareYou need to have:
1        an user account on www.ioversal.com
2.        a valid VERTEX license (that was bought with/transferred to this account and that is not already activated on another system/dongle)
3.        an internet connection
4.        an empty ioversal Smart Dongle that was bought from a distributor or on the ioversal online store



warningUSB 3-Hubs and Dongles
Try to avoid to plug in Dongles into an USB 3.0 Hub. Some hubs might have down compatibility problems with USB 2 and 1 drivers. Result can be that the dongle is frequently check out and in again for a short time frame. You can avoid this risk by using the USB 3.0 or  USB 2.0 ports on your System to plug the dongle in.

Activation

1.Plug in an empty ioversal Smart Dongle to one of the USB Ports of your PC

2.Start VERTEX

3.Go to the license menu




4.Select Smart Dongle License

5.Click to "Dongle Activation"




6.Enter your user account credentials and your password.
As an option: Enter a certain License Key, e.g. if you manage a bunch of VERTEX licenses with your user account. With this option you are able to activate a specific license
If no License Key is entered, the license manager will automatically pick up one of the free licenses from your user account

7.A status message will show you whether the activation was successful or not.

8.Wait a few seconds - The red line under License should change to green

informationInternet-Connection and License
Once a license is successfully activated, feel free to cut off the internet access for your System again. VERTEX and the activated license on your dongle will work until the Expiry Date is reached (the check the Expiry Date got to License Info in the License Menu).
Feel free to carry your activated dongle with you and to use it and your license on every VERTEX system

Deactivation

1.Click to Dongle De-Activation

6.Enter your user name and your password, confirm

7.A status message will show you whether the activation was successful or not.

8.The VERTEX License Status is underlined in red

9.Your License in your online license management at www.ioversal.com is in status released again

Update

informationBuy an update and renew your License
You are able to renew your license to get among others the newest updates for VERTEX versions. To update a license, log in to your user account,
go to "Licenses" there. Open your License list, click to "renew". The license update is put in the shopping cart.
If you want to change the type of your license, please contact the support



1.Check at your user account for a valid update for the license that is logged to the System you want to update

6.Go to entry "Dongle Update"

7.Enter your user name and your password, confirm

8.A status message will show you whether the activation was successful or not.

9.Check at Dongle Info: the displayed expiry date should be extended

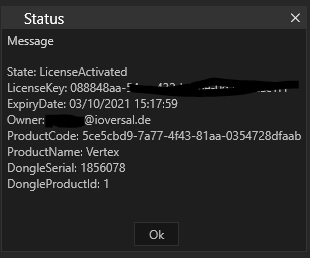

Dongle Info

Opens a Window that shows you all information that is stored on the ioversal Smart Dongle that is currently plugged in






Dongle Offline Activation

hardwareYou need to have:
1        an user account on www.ioversal.com
2.        a valid VERTEX license (that was bought with/transferred to this account and that is not already activated on another system/dongle)
3.        an USB Stick, SD Card or external harddrive
4.        a second PC with an internet connection
5.        an empty ioversal Smart Dongle that was bought from a distributor or on the ioversal online store



1.Start VERTEX

2.Open License Menu

3.Select Smart Dongle License




4.Click to "Export Dongle Activation File"

5.Enter your user account credentials and your password and confirm (This information will be stored into the activation file)

6.Save the activation file on a portable drive

7.Go to a PC with internet connection and sign in with your user account on www.ioversal.com

8.Go to "My Licenses", select "License details"

License details at www.ioversal.com for a released but not yet activated license. Once activated, you will see more options for e.g. deactivation

License details at www.ioversal.com for a released but not yet activated license. Once activated, you will see more options for e.g. deactivation

9.Click to "Activate License/Dongle"

10.Upload the Activation file

11.Download the "Receipt" Activation File and upload this to your portable drive

12.Go back to your PC again, click to "Import License Activation File"

13.Choose the "receipt" activation file you have downloaded before

14.Your license should be activated now on your Dongle
After a few seconds the license status should change from red to green .
To double check, please open Dongle Info



Offline Deactivation

hardwareYou need to have:
1        an user account on www.ioversal.com
2.        A VERTEX system with an activated license which is assigned to your user account
3.        an USB Stick, SD Card or external harddrive
4.        a second PC with an internet connection
5.        An ioversal Smart Dongle with an activated License which is plugged in



5.Start VERTEX

6.Open License Menu

7.Select Smart Dongle License

8.Select Export Dongle De-Activation File




10.Enter your user name and your password

11.Save the deactivation file on a portable drive

12.Go to a PC with internet connection and sign in with your user account on www.ioversal.com

13.Go to "My Licenses", select "License details"

14.Click to "Deactivate License/Dongle"

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation

13. A file upload dialog opens

14.Select the deactivation file and upload it

licenseonlinemanagement_deactivation_zoom50



15.Your license now should be successfully deactivated



informationDe-Activation file when VERTEX is uninstalled
If you uninstall VERTEX from your PC and the software is still activated, die VERTEX uninstaller offers you to save a deactivation file.
To deactivate your license, please also do steps 7 to 12.



Emergency License Reset

The Emergency License Reset should help you when your hardware was changed without a license logout before, your hardware was stolen or even if something went absolutely wrong during your license activation

You can trigger an Emergency License Reset at your www.ioversal.com online Account ( My Licenses -> Details)

informationFor every of your licenses you can trigger an Emergency License Reset maximum 3 times.
If you have reached this limit for somehow, please contact the support team.
With every Emergency License Reset the recent hardware and/or dongle ID that was connected with this license will be blocked and blacklisted. You are able to activate this license again on another System.

Steps

Go to www.ioversal.com

Log In with your account

Go to "My Licenses"

select the affected License there and click on "Details"

If this licenses is activated you will find there the Emergency License Reset Button

Check the details and confirm

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation

License details at www.ioversal.com for a  license that was activated on a system before. Once activated, you will see more options for e.g. deactivation
