Powerpoint Remote

VERTEX is able to control a Microsoft Powerpoint application remotely over network

A background service is able to start Microsoft Powerpoint, load a .pptx-file, jump to a slide or set a presentation into full screen

The background service can be controlled by a PPT Remote Device that is part of the VERTEX device library

Use Cases

You need to integrate Powerpoint with its full functionality into your project and not even import and read Powerpoint files

Use VERTEX as master control system to remote start and control a PC with Powerpoint in your installation

Capture the output of a Powerpoint PC as Live Input into VERTEX and control slide changes from your VERTEX timeline

Read out notes of a Powerpoint file and display this notes as text on another screen - e.g. backstage

What you need

a PC with Microsoft Powerpoint installed and Microsoft Windows as operating system

a PC with VERTEX installed

a network connection between both PCs (Wireless LAN or cabled LAN)

informationVERTEX and Powerpoint on the same PC
For Tests or even smaller projects with only one PC, you are even able to remote control a Microsoft Powerpoint application on the same PC on which VERTEX is running. Just use your local IP address as IP address of the PPT Remote Device

Setup

1. Prepare Powerpoint PC

Install Vertex on the PC where Microsoft Powerpoint already is installed.

Check your Network settings, prefer a static IP address to avoid address changes after a reboot

information
VERTEX Trial Version is enough
You don't need any Vertex license on the Powerpoint PC. The Vertex Trial version is enough.
The Vertex installer will install a Windows background service to remote control Microsoft Powerpoint on this PC.



Reboot the PC after installation

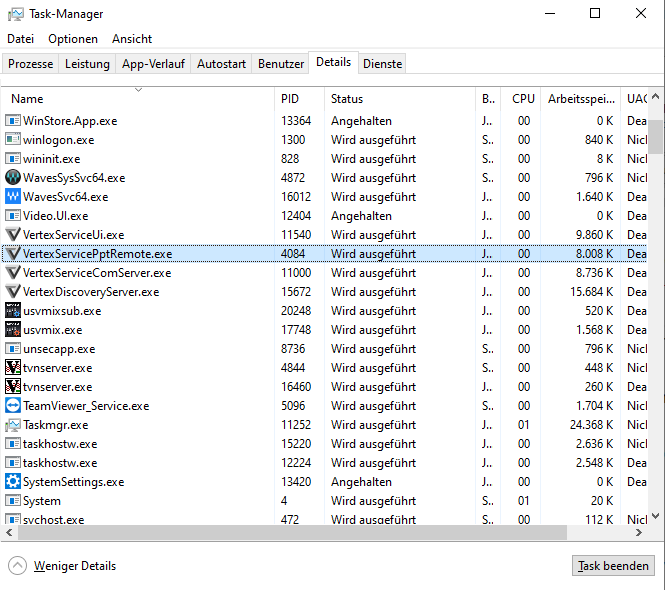

Open Windows Task Manager and Check if VertexServicePptRemote.exe is running into background

You don't have to start the main  Vertex application on this computer. To remote control Powerpoint it is only necessary that all VERTEX background services are running.

powerpoint-remote_taskmanager_zoom75

2. Prepare your VERTEX Project

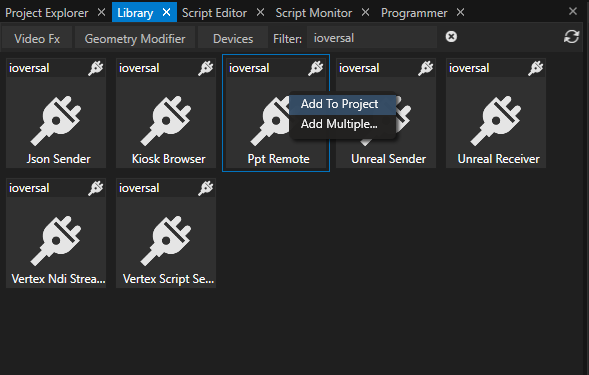

Search for the "Ppt Remote" device into the Library Editor

Open the context menu by a right click

Add this device to your project

powerpoint-remote-library_zoom75

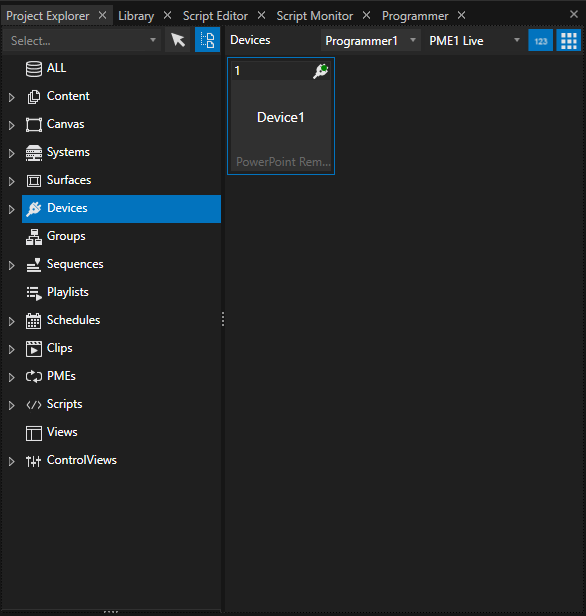

Select the device into Project Explorer

powerpoint-remote-project-explorer_zoom75

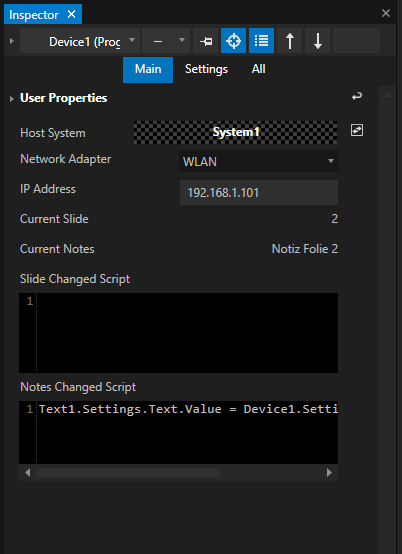

First configure the Network Adapter of the Ppt Remote Device in the Inspector

Use the reconnect button and test the connection

powerpoint-remote-project-inspector_zoom75

Now the Device should be ready to work with

Examples

Launch a specific Powerpoint file and go into presentation mode

Device1.Launch C:\Users\User1\Desktop\test.pptx



Quit whole Microsoft Powerpoint application

Device1.Quit


End presentation mode of Powerpoint but keep Powerpoint application running

Device1.EndPresentation



Go to Slide 2

Device1.GotoSlide 2



Example for a more complex start script

Reset Connection (to be sure that connection is ready and working) and wait 1 second

Set Volume of Powerpoint PC to 0 and wait 1 second

Launch test.pptx file from Desktop of User1 and wait 3 seconds

Go to next slide

Device1.ResetConnection
wait 1
Device1.SetVolume 0
wait 1
Device1.Launch C:\Users\User1\Desktop\test.pptx
Wait 3
Device1.NextSlide

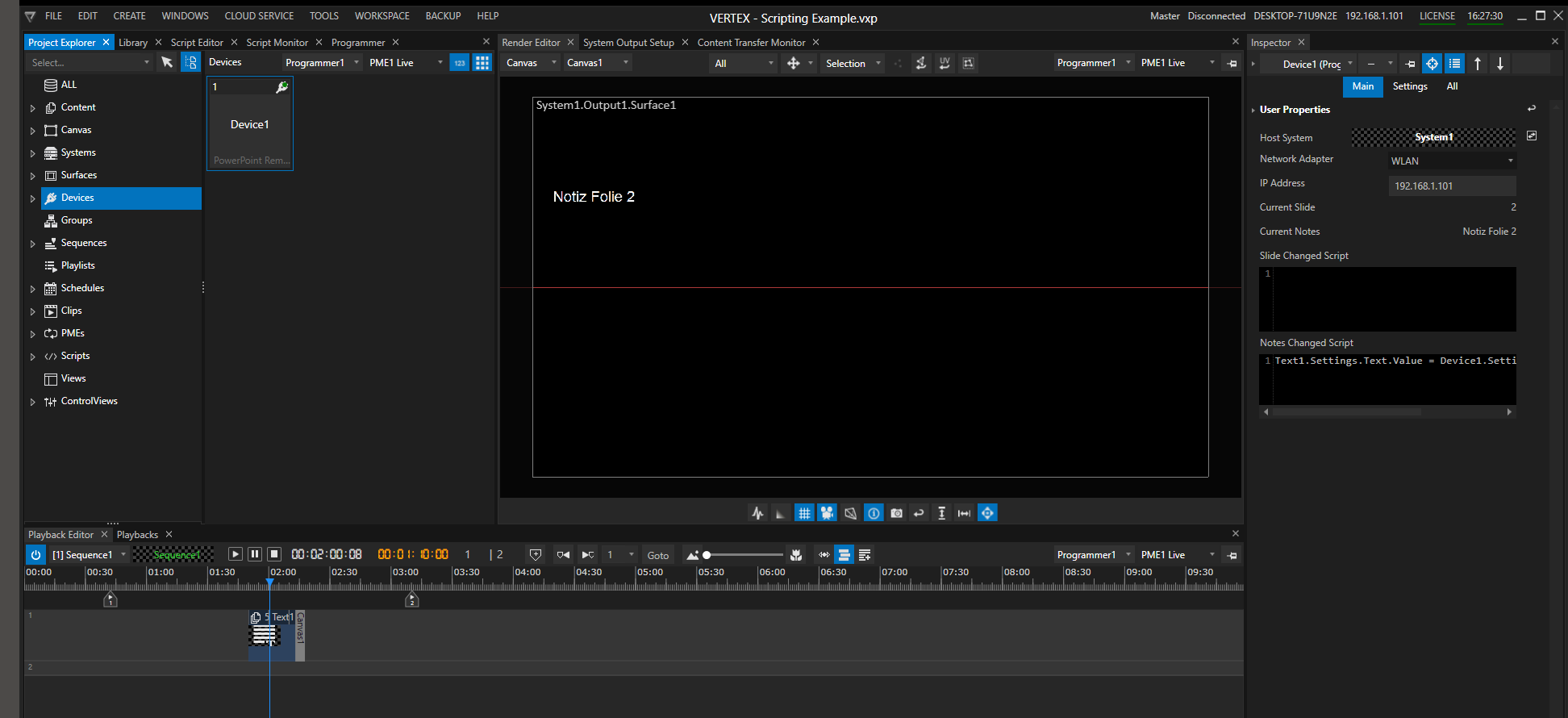

Show Notes from Powerpoint file as text content in VERTEX

The current powerpoint notes should be displayed as text content into VERTEX

For our usecase, the text content into VERTEX should only be changed when the notes of the pptx are changed

The Ppt Remote Device offers 2 options: "Slide Change Script" and "Notes Changed Script". For our usecase, add the following code snippet as Notes Changed Script

Content1.Settings.Text.Value = Device1.Settings.CurrentNotes.Value



powerpoint-remote-notes-as-text-example
