Schedule Editor

<< Click to Display Table of Contents >>

Navigation:  Advanced Features >

Schedule Editor

The Schedule Editor provides you with the option to execute script commands by a specified time and date.

The Schedule editor comes with a calender based user interface.

Access all settings in the inspector.

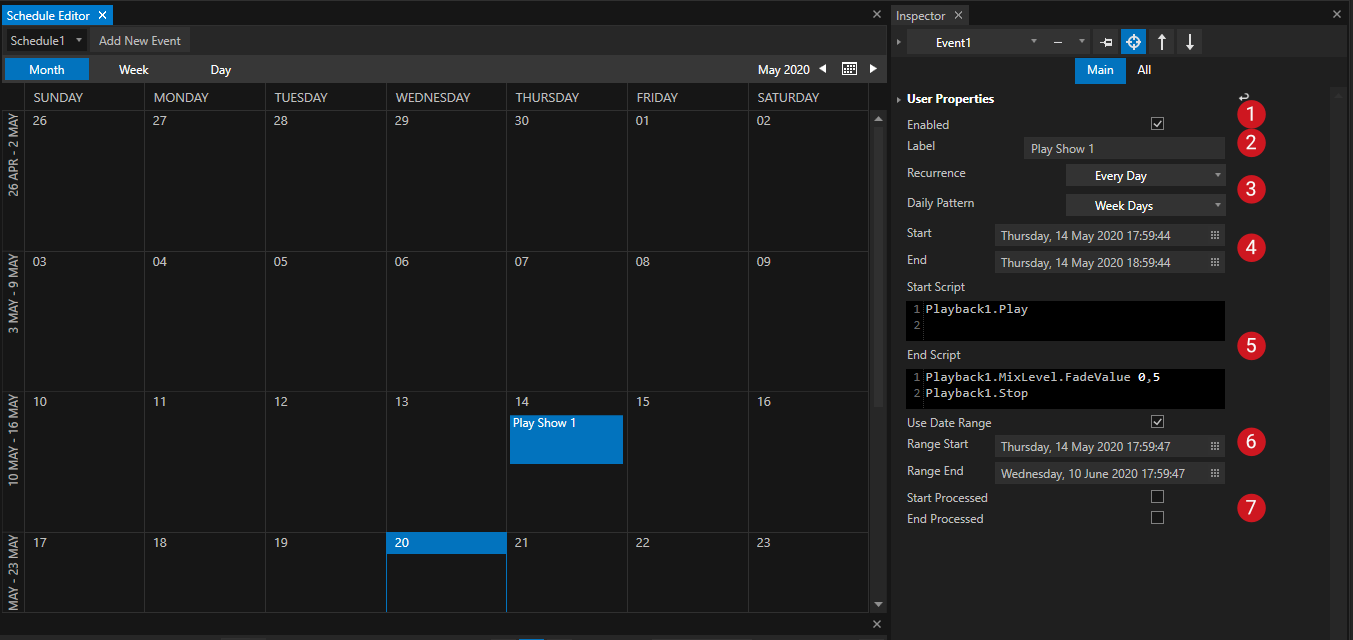

User Interface

schedule-editor




01

Enabled

Enable or disable an event.

02

Label

Add a custom label for your event. This Label is also displayed as the event's name in calender view.

03

Recurrence
Daily Pattern

Sets the Recurrence.
Default: Once - event will be triggered only once
Option: Recurrence from Minute to year

04

Start and End Time
of the Event

Sets the start time of your event and the end time.
At start and at the end separate scripts can be executed

05

Script Commands

Start Script
Enter a Script or single Script Commands that should be executed at the start of your event
End Script:
Enter a Script or single Script Commands that should be executed at the end of your event

06

Date Range

Use Date Range

Default: Disabled
Enable to use only a time span in which the event will take place.
Range Start
Start date for the time span. First date on which the event is executed
Range End
End date for the time span. Last date on which the event is executed


07

Start Processed and
End Processed

Information on if and when an event was executed.
The check is set by vertex when the event start has been executed. Useful to supervise if the event start has taken place, when working with a recurring event.
Start Processed

Will be checked when event start is processed
End Processed
Will be checked when event end is processed

Create a Schedule with an Event

1.Go to the "Create" Tab into the Main Menu and create a Schedule
A first Schedule is already created by VERTEX when you start with a new project

2.Go to the "Windows" tab into Main Menu and open a new Schedule Editor

3.Select a Schedule you want to edit in the dropdown of the Schedule Editor

4.Select a date into calender.

5.Click to the "Add new Event" button

6.Select the new Event in the calendar and adjust settings in the Inspector.
