VIOSO AutoCal - Camera-based Calibration

<< Click to Display Table of Contents >>

Navigation:  Advanced Features >

VIOSO AutoCal - Camera-based Calibration

VERTEX is shipped with VIOSO's camera-based calibrator software for projectors

A VIOSO trial is available for testing in each regular VERTEX version without any additionally license key

VIOSO AutoCal requires an additionally license per output

Use VIOSO Autocal

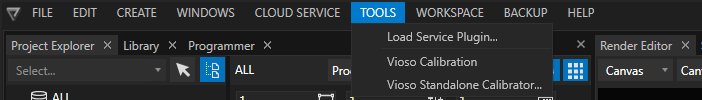

vioso-start-calibrator_zoom75

Go to TOOLS section into the main menu

Go to Vioso Calibration and open the Vioso Calibration Editor

background-knowledgeVioso Standalone Calibrator
VERTEX comes with a deep integration of VIOSO's camera calibration technology and passes all relevant parameters for surfaces and canvas to VIOSO's calibrator software.
Warp and blend files and even VIOSO's own calibration files are handled by VERTEX. For some special needs and projects, it is also possible to start the standalone calibrator. For this very deep knowledge in VIOSO's technology and file structure is strictly recommended

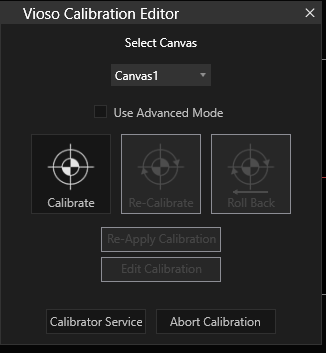

vioso-calibration-editor_zoom75

Select a Canvas  - all Surfaces of this Canvas are calibrated with Vioso's calibration software

For calibration follow the step-by-step guide that is linked below

informationUse Advanced Mode
When this checkbox is enabled, there are more options for manual settings during VIOSO's step by step calibration process.


Licenses

Based on VIOSOS's licensing model, AutoCal licenses are counted per output

To buy a VIOSO license , please contact the ioversal sales team. Also VIOSO is selling a special VERTEX edition that already is shipped with an AutoCal license.

Step by step guide
