PME - Playback Mixing Engine

PMEs into VERTEX host all Playbacks

by default there are 2 PMEs - one for Live and a second for a Preview

The PMEs into VERTEX are like Video Master Faders that define if the final Signal goes out to Live or Preview

For every Render Editor and Playback Editor you can select whether it should show Live or (one of the) Previews

Playback Mixing Engines (PMEs)

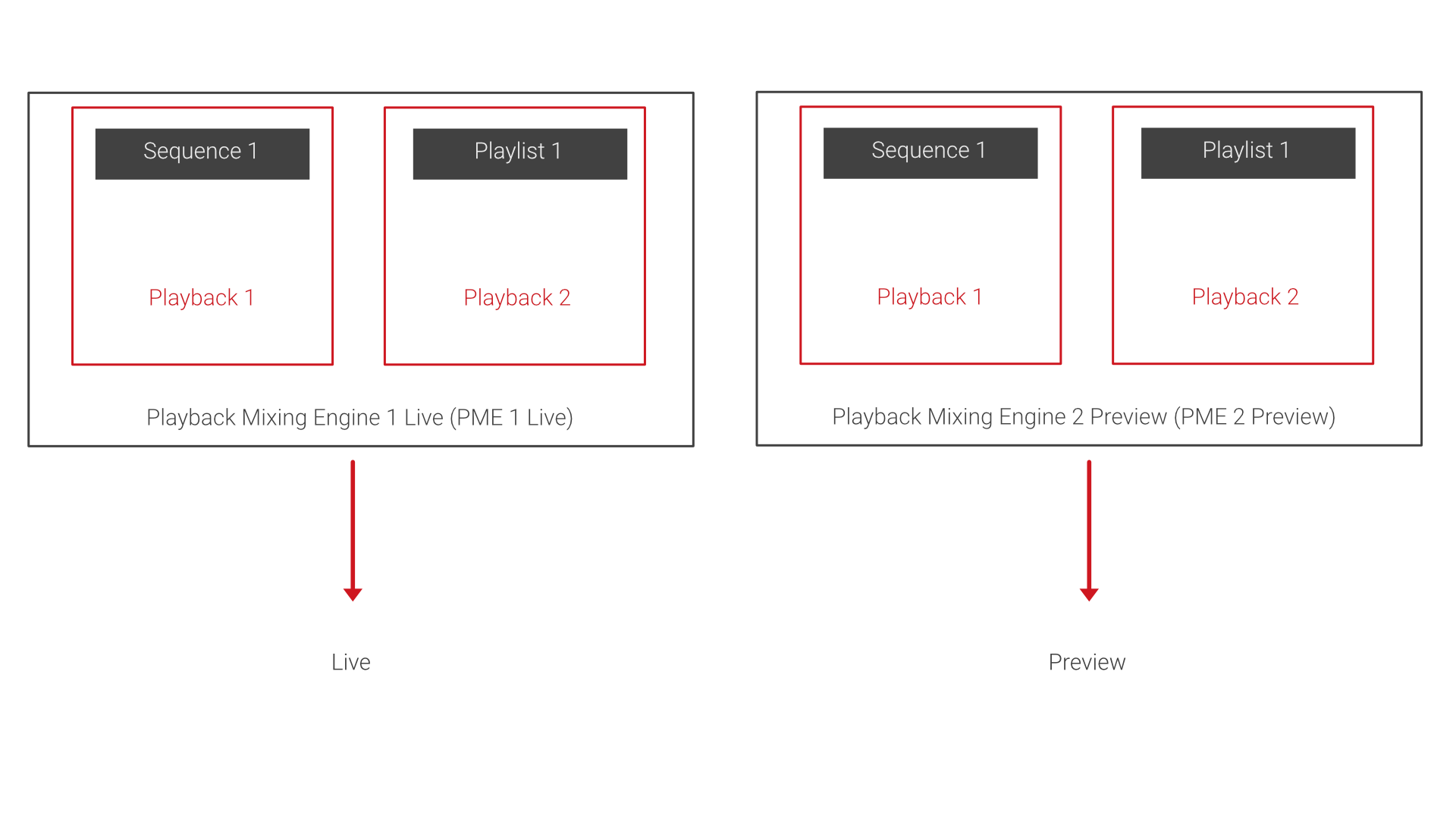

pme-playback-sequence-model-2pmes

PMEs are the lowest level of the Playback Chain into VERTEX. The final Result from the PME goes out to Live or Preview Renderer.

Each PME hosts all Playbacks of a Project - With the terms of a video mixer: PMEs are your master groups or faders.

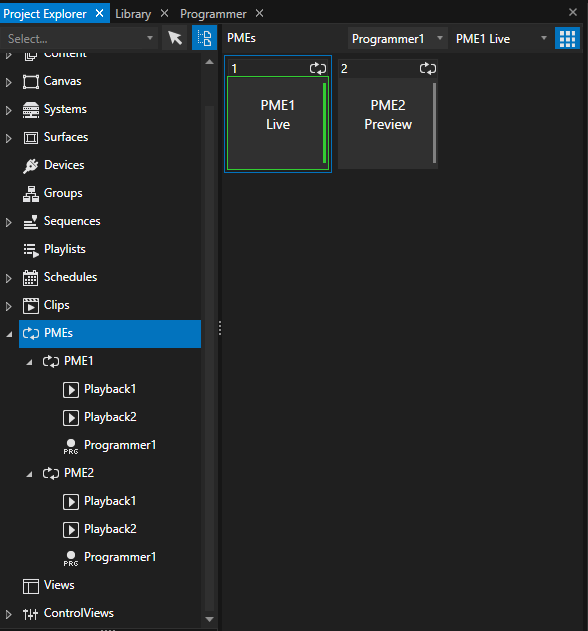

pme-project-explorer

By default there are 2 PMEs into a VERTEX project:

Live and

Preview.

Live

Live PME always goes out to Fullscreen Renderer.
Audio from all playbacks running into PME Live is going out the the Audio Device that was set as live device



Preview

A Preview PME renders a Preview of your Playbacks.
Into each Playback Editor and each Render Editor, you are able to choose which PME should be shown.
Switch to e.g. PME 2 to work with the Preview

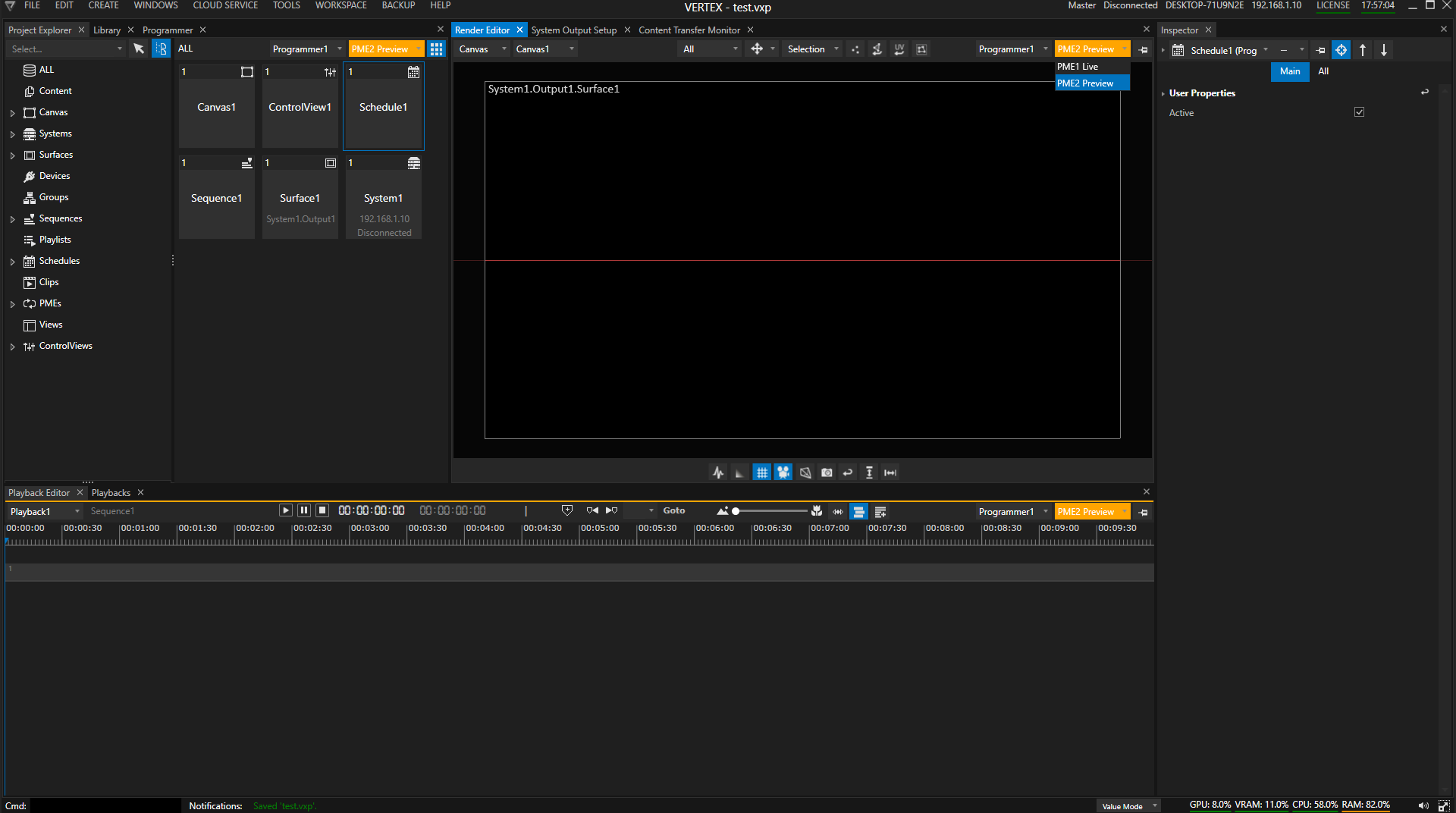

pme-editors-set-to-preview

You are allowed to create additional PMEs - depending on how many different Previews you want to have for more. complex projects.
Regardless of the number of your Playback Mixing Engines, only one PME could be the Live PME

Programmer and PME

The PMEs also hosts your Programmer(s).
Depending on the selected PME into your Playback Editor, your changes into Preview will be stored as Preview Changes into the Programmer.

Mix Level

pme-project-explorer


Each PME has a Mixing Level - like a Video Mixer has.
The Mixing level decides about the signal that is sent to your live output. Value 1 is sent to Live, Value 0 not.
By default the Mixing Level for Live is set to 1.

The mixing level for all Preview PMEs is set to 0. The signal of a Preview PME is displayed into e.g. a Preview Render Editor, but the signal is not mixed to the live output.
By increasing the mixing level up to 1 you are able to mix preview into live
There is also the option to swap preview and live

Create a new PME

Go to Main Menu, open "Create" tab and select "Create PME"

or

Go to the PME section into Project Explorer, right-click to open the context menu and select "Create new"

Settings

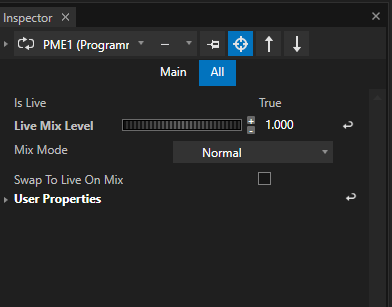

pme-inspector-all

Live Mix Level

If set to 1, signal is sent to Live Output and Fullscreen Renderer

If set to 0, signal is not sent to Live Output and only shown into Preview Render Editors

Mix Mode

Define the Mixmode when fading Live Mix Levels
Options: Normal, Crossfade, None

Swap to Live on Mix

When enabled a Preview PME is swapped from Preview to Live if Mixing Level reaches 1.

The "old" Live PME is swapped to Preview.
